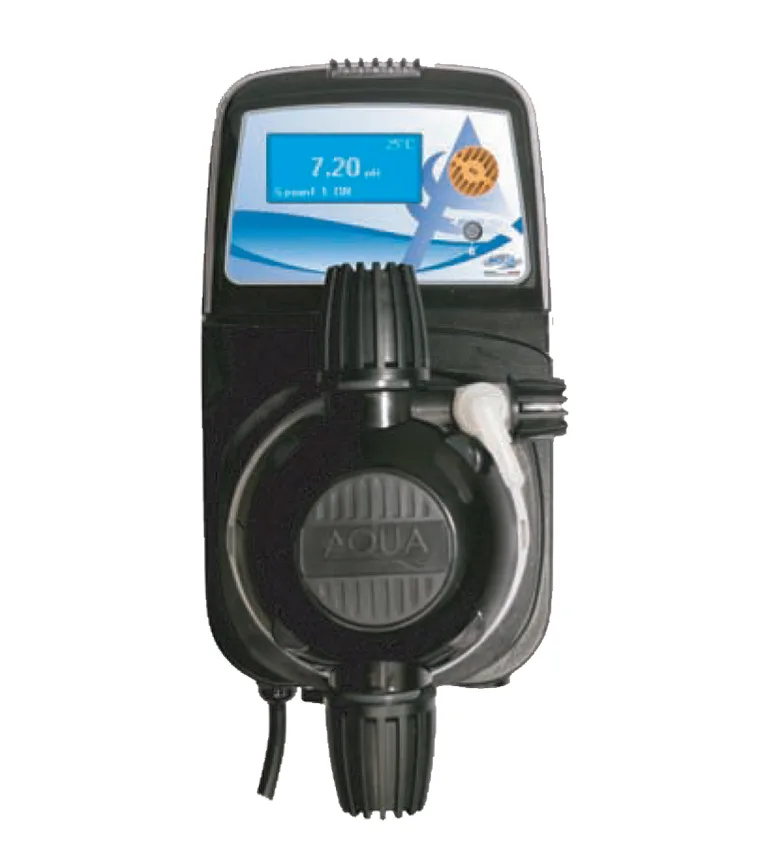

HC 151 + PH-RX
Context of use
For private and public pools
For dosing with acid/alkaline corrector, chlorine or other disinfectants, with the built-in tool for pH or RX Digital
Description
Digital electromagnetic dosing pump with integrated instrument for pH or Rx control (ORP)
Setting for constant or proportional dosage
Reinforced PP housing, suitable for aggressive working environments
Inputs: level probe, inhibit, proximity sensor
Relay output for dosage or alarm signal (optional)
Selectable language and unit of measure
132 x 56 pixel graphic display
Simplified menu access via encoder
Wall mounting with wall fixing bracket included in the installation kit
Protection rating: IP65
Standard power supply: 100-240V AC, 50/60Hz
Technical features
Assisted calibration of the measurement probe
pH or Redox measurement (ORP) selectable by programming
Selectable dosage mode between acid and alkaline (pH) and direct and reverse (Rx ORP)
Overdose alarms (OFA)
Verification of electrode quality
Programming delay intervention of the level probe
Choose the desired performance between 3 different models
