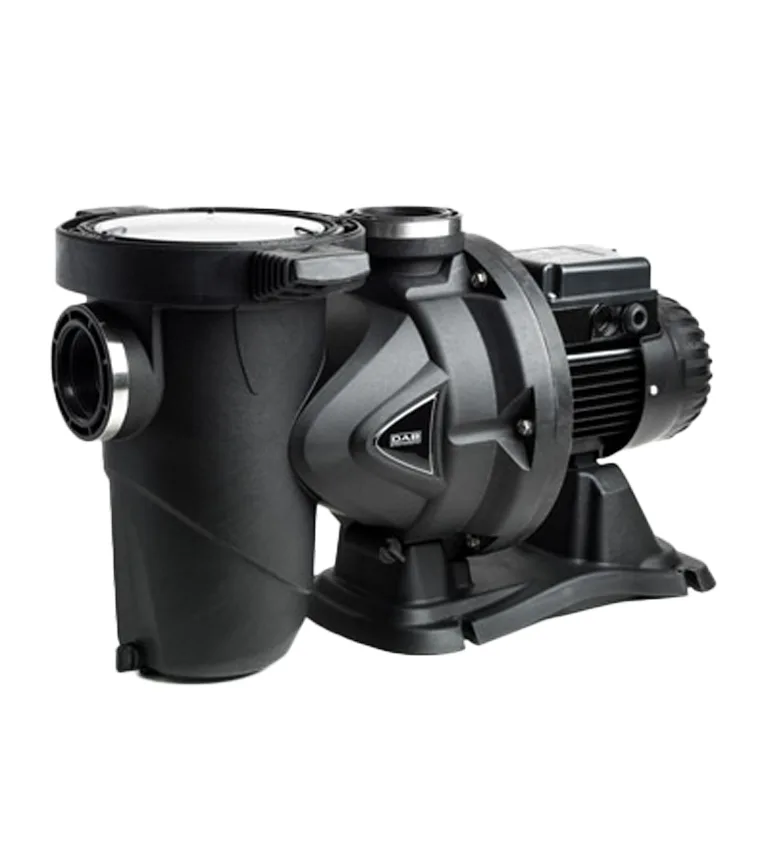

SELF PRIMING PUMP “EUROSWIM”
Description
Technical features
Fibreglass reinforced technopolymer body, impellar and diffuser
Nylon strainer to prevent debris from entering the system
Clear antioxidant polycarbonate strainer lid for visibility during operation
Electrical motor shaft in stainless steel AISI 416 (Completely insulated from the water flow)
Mechanical seal made in carbon, alumina, NBR and AISI 316
Pump body O-rings in NBR, threaded fasteners and reinforcing rings in AISI 304
Butterfly drain plugs for easy removal and fitting. No tools necessary
Asynchronous continuous duty 2-pole motor (S1) with generous range of power ratings from 0.5 HP to 3 HP, single phase and 3-phase
Motor casing in die-cast aluminium with electrophoresis surface treatment to prevent oxidation, even in aggressive environmental conditions
Baseplate with rubber mounts to reduce vibration transmission
Single phase version with integral thermal and over current protection and permanent split capacitor (PSC), assembled inside the terminal box for all versions.
Power supply: Single phase 220-240V 50Hz, 3-phase 230/400V 50Hz, 60Hz on demand
Operating range: Up to 42m3/h with pressure head up to 22m
Maximum liquid temperature: 60° C
Maximum ambient temperature: +50° C
Motor: 2900 RPM
Maximum operating pressure: 2.5 bar
Protection rating: IPX5
Insulation rating: Class F
Models
CODE | DESCRIPTION | |
|---|---|---|
EUROSWIM 50M/A | SELF PRIMING PUMP "EUROSWIM" 0.5HP 1 PHASE - 11M3/HR AT 10MTR HEAD | |
EUROSWIM 75M/A | SELF PRIMING PUMP "EUROSWIM" 0.75HP 1 PHASE - 14M3/HR AT 10MTR HEAD | |
EUROSWIM 100M/A | SELF PRIMING PUMP "EUROSWIM" 1HP 1 PHASE - 18M3/HR AT 10MTR HEAD | |
EUROSWIM 150M/A | SELF PRIMING PUMP "EUROSWIM" 1.5HP 1 PHASE - 23M3/HR AT 10MTR HEAD | |
EUROSWIM 200M/A | SELF PRIMING PUMP "EUROSWIM" 2HP 1 PHASE - 29M3/HR AT 10MTR HEAD | |
EUROSWIM 300M/A | SELF PRIMING PUMP "EUROSWIM" 3HP 1 PHASE - 40M3/HR AT 10MTR HEAD | |
EUROSWIM 150T/A | SELF PRIMING PUMP "EUROSWIM" 1.5HP 3 PHASE - 18M3/HR AT 10MTR HEAD | |
EUROSWIM 200T/A | SELF PRIMING PUMP "EUROSWIM" 2HP 3 PHASE - 23M3/HR AT 10MTR HEAD | |
EUROSWIM 300T/A | SELF PRIMING PUMP "EUROSWIM" 3HP 3 PHASE - 40M3/HR AT 10MTR HEAD | |
EUROSWIM 75T/A | SELF PRIMING PUMP "EUROSWIM" 0.75HP 3 PHASE - 11M3/HR AT 10MTR HEAD | |
EUROSWIM 100T/A | SELF PRIMING PUMP "EUROSWIM" 1HP 3 PHASE - 14M3/HR AT 10MTR HEAD | |
EUROSWIM 50M/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 0.5HP 1 PHASE - 11M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 75M/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 0.75HP 1 PHASE - 14M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 100M/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 1HP 1 PHASE - 18M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 150M/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 1.5HP 1 PHASE - 23M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 200M/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 2HP 1 PHASE - 29M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 300M/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 3HP 1 PHASE - 40M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 150T/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 1.5HP 3 PHASE - 18M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 200T/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 2HP 3 PHASE - 23M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 300T/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 3HP 3 PHASE - 40M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 75T/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 0.75HP 3 PHASE - 11M3/HR AT 10MTR HEAD- 60HZ | |
EUROSWIM 100T/A-60HZ | SELF PRIMING PUMP "EUROSWIM" 1HP 3 PHASE - 14M3/HR AT 10MTR HEAD- 60HZ | |
